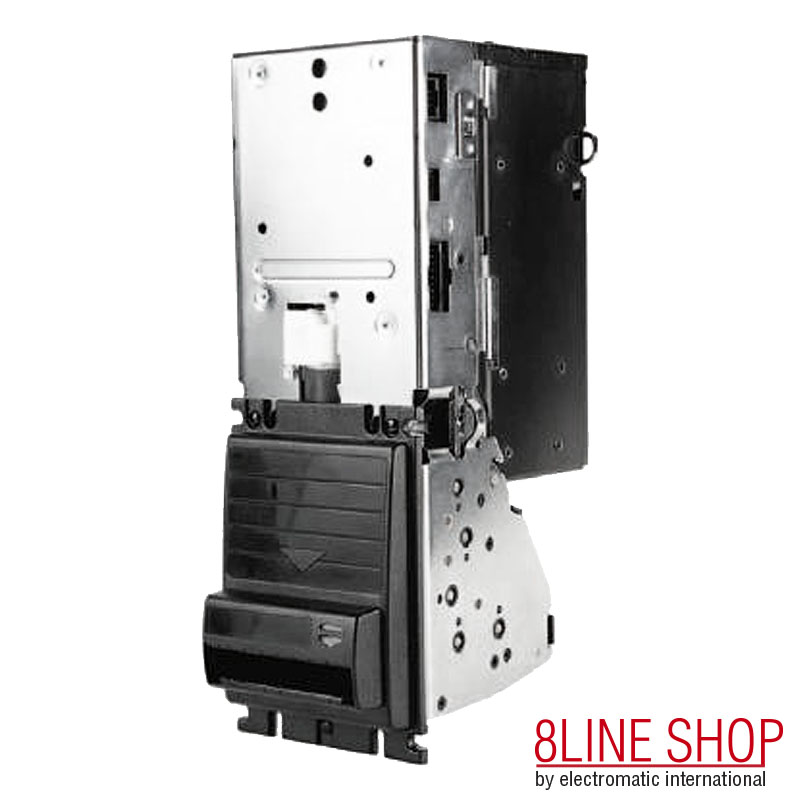

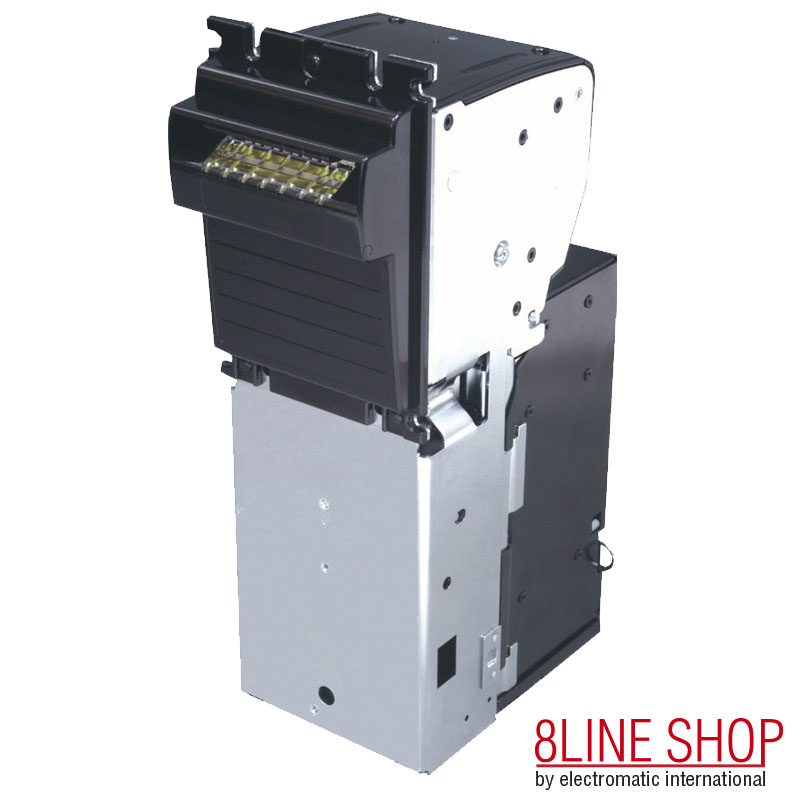

CashCode SM BackLoad Bill Validator

The Global Standard for High Volume Transactions

The CashCode SM BackLoad single width bill validator is designed to meet the needs of high volume, indoor or outdoor automated self-service payment kiosk. As the industry's fastest bill acceptor, the SM will complete a transaction in less than 2 seconds. It stacks from front to back in a lockable, removable cashbox. The unique design allows Operators to mount the unit directly on the door or use a hinge bracket in the up-stack or down-stack position.

SM BackLoad uses reliable beltless transportation guides and is equipped with multiple sensor technology which provides world class validation to any street grade bills. It provides the highest security for validation and anti-stringing. This bill validator is also available in various configurations to meet industry demands.

Key Advantages:

• Widely deployed as part of a bill payment system in self-service kiosks and gaming and transportation applications across 55 countries, performing daily volume transactions with 500+ bills
• Provides the highest validation and security options
• Simplistic design reduces the cost of ownership

Product Specifications

Dimensions (H x W x D in mm):

• 266 X 104 X 119 (400 cashbox) / 145 (600 cashbox) / 189 (1,000 cashbox) / 237 (1,500 cashbox)

Validation:

• Validation rate: 98% or higher
• Bill width validated: 67 mm or 71 mm wide
• Bill length validated: 120 to 160 mm
• Bill insertion: 4-way
• Barcode ticket insertion: 2-way
• Escrow: Single bill or barcode ticket
• Complete transport cycle: 1.7 seconds
• Validation sensors: Optical, Inductive and Dielectric

Interfaces supported (12V):

• ccNET, RS232, CCS (Serial, TTL), Pulse, ID-003 (TTL), and MDB

Interfaces supported (24V):

• MDB (Single price with adapter)
• Communication connector (ccNET, CCS, and ID003): 18 pin Part No AMP 102398-7, 102536-7

Firmware upgrade:

• Portable memory card
• Host network download

Operating temperature:

• 12V: 0° C to 50° C
• MDB 24V: -18° C to 60° C

Operating voltage:

• 12V DC+ - 1 V, Operating 2.0 A, Standby 0.2 A
• 24V DC+ - 1 V, Operating 2 A, Standby 0.2 A

Compliance:

• CE, UL 756, and RoHS

Cashbox Options

• 400 bill capacity
• 600 bill capacity
• 1,000 bill capacity
• 1,500 bill capacity

Horizontal Option

• Bezel used on Horizontal is a standard plastic bezel
• Cashbox sizes available: 170 and 300 note capacity
• Locking cashbox options: 1 - 2 standard locks and seal tab

Down-stack Option

• Choose from 4 bezel options (see accessories)

Locking Cashbox Options

• 1 - 2 standard locks, seal tab or extra high-security gaming lock can be added onto any cashbox

Up-stack Option

• Choose from 4 bezel options (see accessories)





Benifits

Superior Technology:

• High acceptance due to unique validation technology utilizing 3 different sensor technologies
• High jam reliability by effectively processing single width bills using proven beltless transport mechanisms
• Robust cashboxes available in various sizes with lock & seal tab configurations

 Exceptional Performance:

• 98% or higher first-time insertion rate on street grade or new bills
• Better protection against counterfeit and manipulated bills
• Fastest validation speed in the industry
• Supports over 55 countries with currencies of 67 or 71 mm bill widths
• Algorithm supports self-tuning and self-calibration

Flexible Design:

• Easy to install, replaces any bill acceptor, footprint fits most kiosks
• Available in most industry protocols and power supply requirements
• Ability to update firmware via portable memory card or over the network
