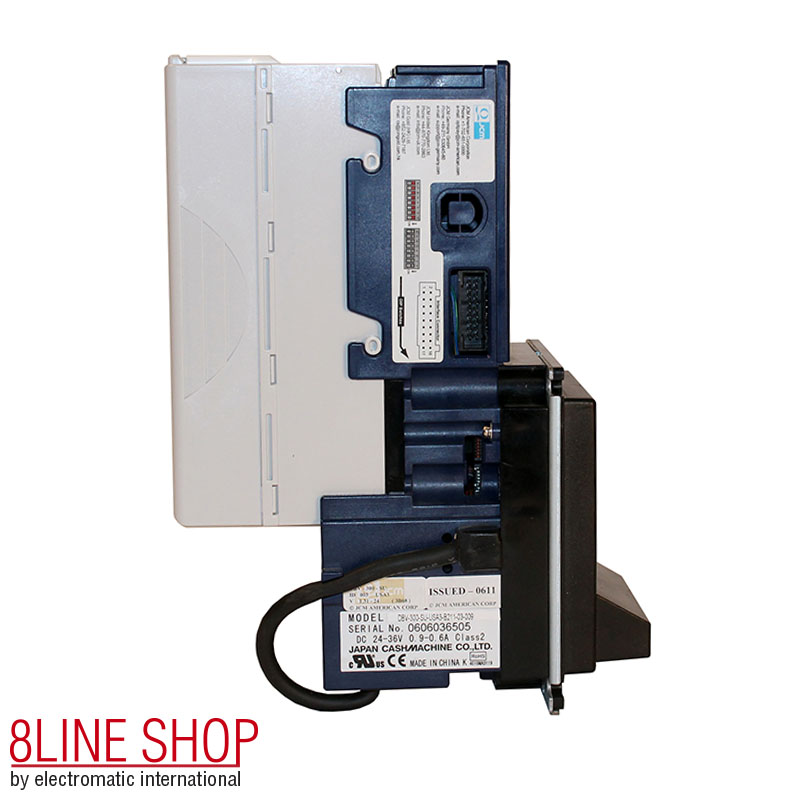

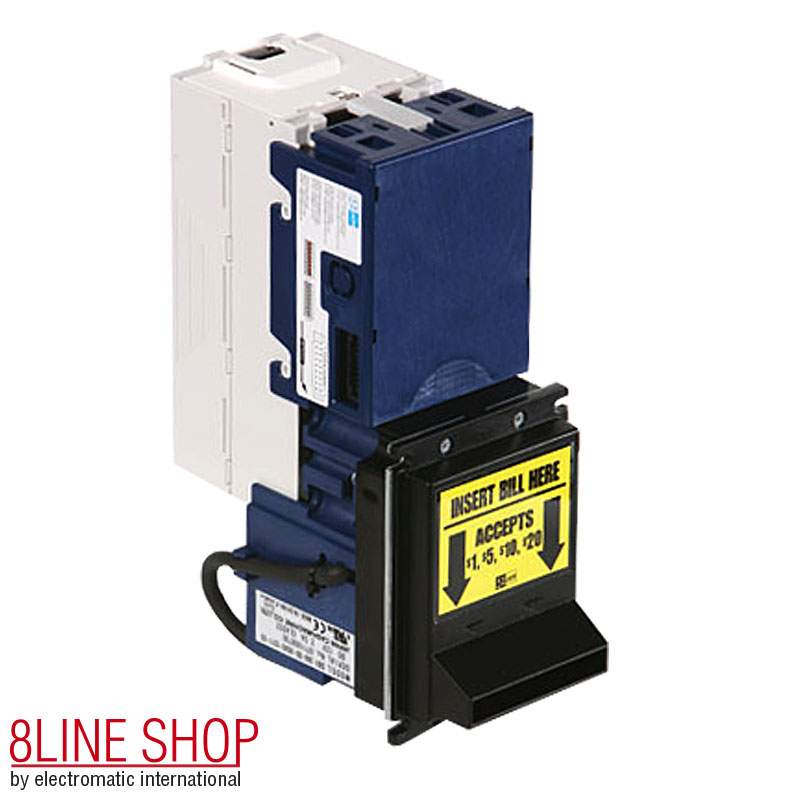

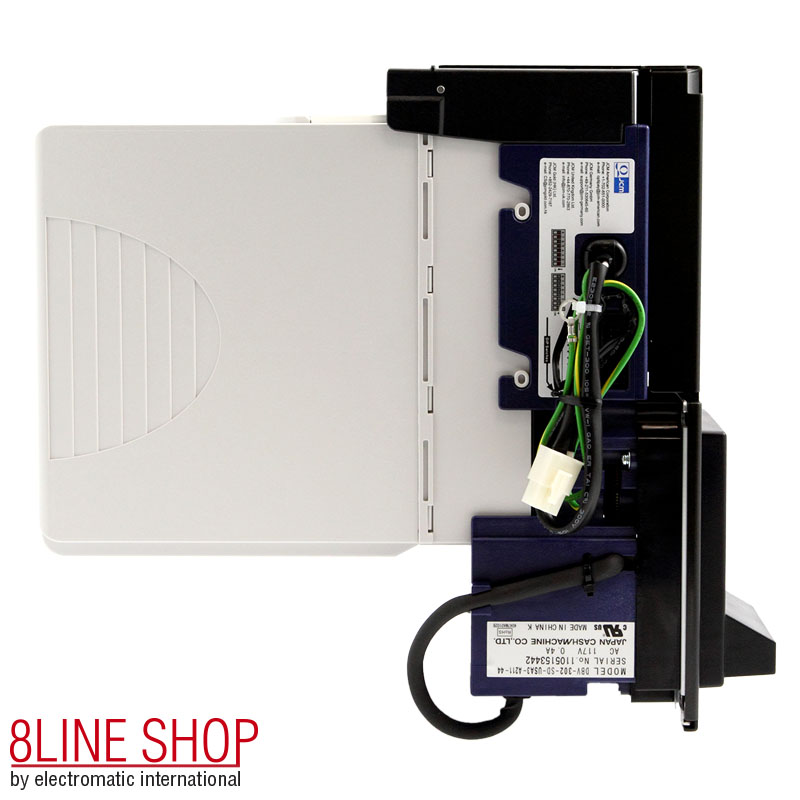

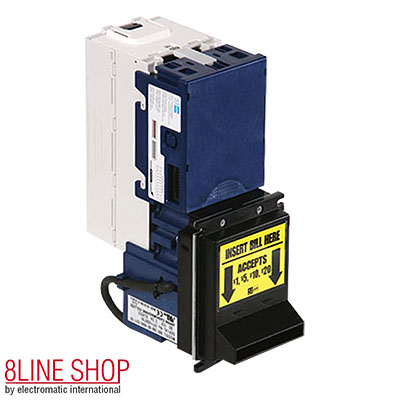

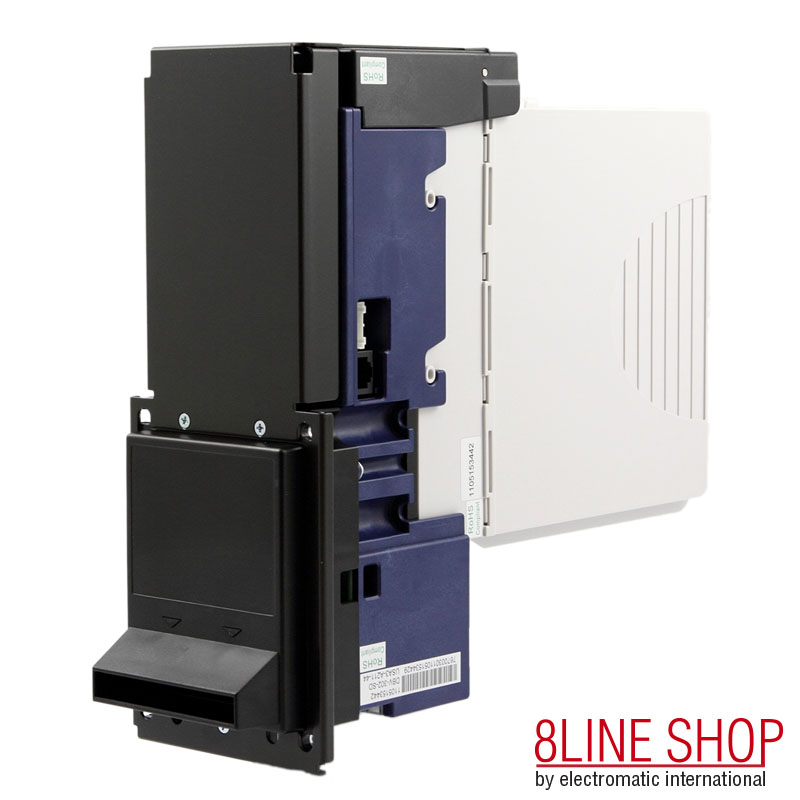

JCM Global DBV-300 Bill Validator

Don't just manage your coins, manage your cash, too, with the DBV®-300 Bill Validator. The first bill validator with optional snap-on bill recycling technology especially for the vending industry.



Features:

• High Impact Plastic Bill Validator
• Removable Cash Box
• Optical and Magnetic Sensors
• Optional Bill Recycler
• Intelligent 3-way LED for easy field diagnosis
• High-speed 4-way acceptance
• Palm PDA Programmable
• Latest recognition / validation software
• Built-in Auditing Functions
  • reliability rate
  • acceptance rate
  • internal diagnostics
  • money auditing

Specifications:

POWER REQUIREMENTS

34 VDC, (20 - 42.5V)
Optional:
12 VDC , (11.5 - 13.5 VDC)
117 VAC (95 - 135V)
24 VAC (18 - 28V)

CASH BOX CAPACITY

300 notes standard
500, 1000 notes optional

WEIGHT

2.54 lb (1.15 Kg)

CURRENCY ACCEPTED

US Currency: 66 mm
International Currency: 62 - 72 mm

OPTIONS / ACCESSORIES

Optipay Coin Changer
Optipay RC
Palm PDA

PROTOCOLS SUPPORTED

MDB, NISR, RS-232, Serial, Pulse, ID-003, ID-0D3, ID-044, ID-002

SOFTWARE

Software upgrades are released for anti-theft, currency changes, and security measures.

TECHNICAL SUPPORT

Training classes are available for all JCM products.

Manuals:

DBV-300 Quick Overview
DBV-300 Quick Reference Guide
DBV-300 Installations Guide
DBV-300 Operations & Maintenance
