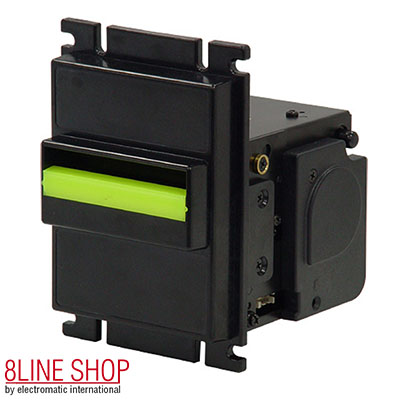

ICT P70 Bill Acceptor

The P70 is the workhorse of non-stacking bill validators. It features a moderate level of security and its pulse interface is compatible with the vast majority of amusement applications in the industry. Rugged construction and rigorous quality assurance make the P70 a validator that will provide years of quality service.

Product Specifications

Bill Insertion:

4 way acceptance

Interface:

Pulse or RS232

Acceptance Speed:

Appox. 2 seconds

Power Sources:

DC 12V ± 5%

Power Consuption:

Standby: 210-350 mA
Operating: 2A
Motor Lock: 2.2A

Acceptance Rate:

96% or greater

Features:

1. Software can be quickly updated through the built-in connector (Flash ROM).
2. The new anti-stringing function has 99.99% success rate.
3. Ultimate acceptance rates.
4. Superior security.
5. Fast, efficient bill handling.
6. Easily remove, open, clean bill acceptor.
7.Auto self-adjusting sensor system.
8. Quick to update software (flash ROM).
9.Combines the bill handing and the advanced bill recognition system to increase acceptance rates and reduce jams.

Manual:

View PDF File (right-click, save targat as: to download)

Dipswitch Settings:

Canada
Mexico
United States (M.D.B)
United States (Pulse+ccTalk)
United States (Pulse+ICT)
