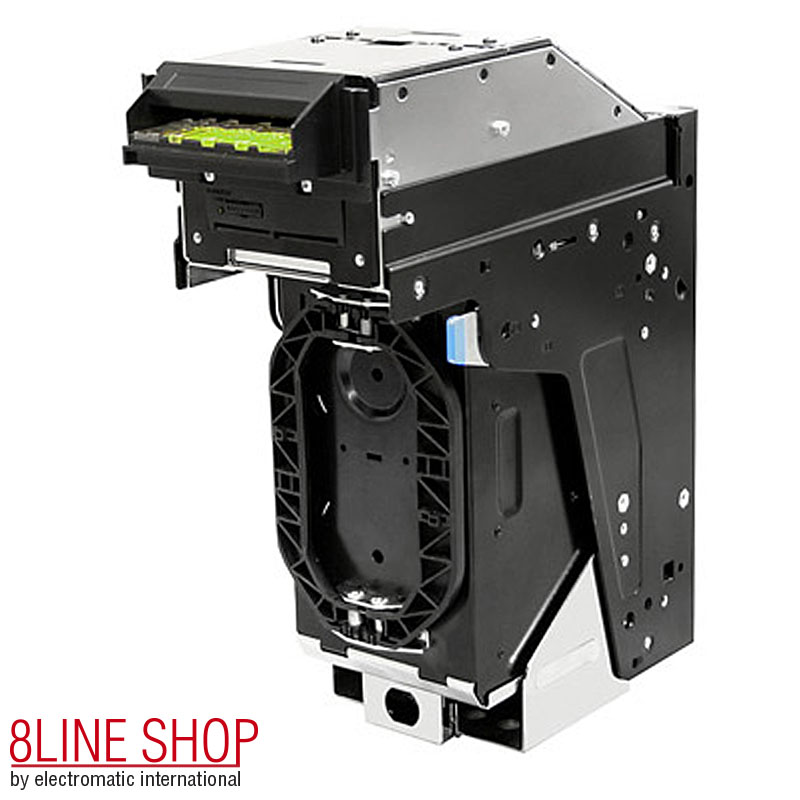

CashCode MFL Multi-Width FrontLoad

The CashCode MFL is a field-proven, modular frontload bill validator with tens of thousands of units deployed globally in many applications and geographies. Its modular sensor design and superior validation technology provide a cost-effective bill validation option for unattended, automated Paystations.

The MFL can be used in several applications, including:

• Parking Pay-on-Foot stations
• Retail self-checkout machines
• Bill payment kiosks
• Gaming machines

Product Specifications

Dimensions (H x W x D in mm):

• 302 x 114 x 271

Validation:

• Validation rate: 96% or higher
• Bill width validated: Up to 82 mm
• Bill length validated: Up to 172 mm long
• Bill insertion: 4-way
• Escrow: Single bill or barcode ticket

Interfaces supported:

• ccNET communications protocol (RS232 physical layer)
• Support for other industry protocol standards

Operating temperature:

• Internal: 0°C to +50°C
• External: -30°C to +50°C

Operating voltage:

• 12V

Compliance:

• CE and UL

Validating Head Options

• Fixed width head for bills 66 or 70 mm wide
• Multi-width head for bills 62 to 82 mm wide

Mechanical Locks

• All custom, high-security locks (two on cashbox and one locking cashbox to housing) can be installed aftermarket
• Alternatively, the device can ship with custom high-security locks pre-installed

HW-enabled SW-update Options

• BlueChip™ Smart-Stick
• One-time upgrade card
• NDEG remote upgrade card

Benifits

Reduced Total Cost of Ownership:

• Modular architecture enables upgrade of validation sensor pack without exchanging the entire head
• Non-demanding maintenance schedule
• The modularity and non-demanding service schedule for this robust bill validator reduces total cost of ownership vs. other competitive devices by at least 30%

Industry-leading Security:

• Multiple locks on a durable metal cashbox
• Cashbox can be locked to device housing

Added Advantage:

• Exchangeable Sense-a-Click™ sensor pack
• Fixed-width and multi-width versions
• Self-centering mechanism in multi-width version
• Accepts barcode coupons
• Anti-stringing sensors
• Remote SW upgrade capability
