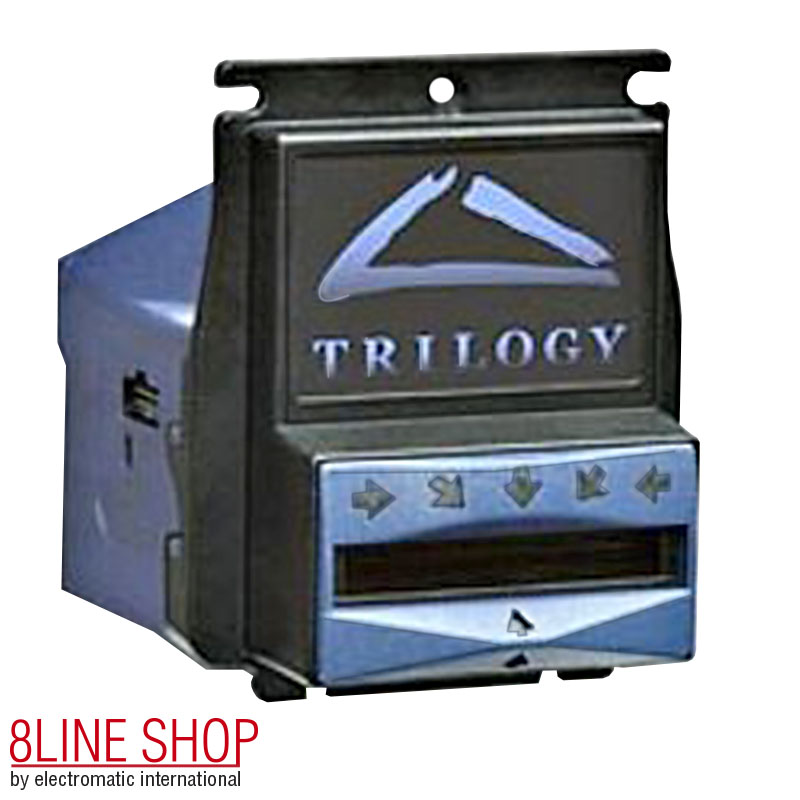

Pyramid Tech Trilogy Series Bill Acceptor

Customers with non-traditional footprint requirements or wide bills select the Trilogy Series.  This durable, cost conscious solution blends the features and benefits demanded by a global marketplace into a single, wonderfully productive unit.

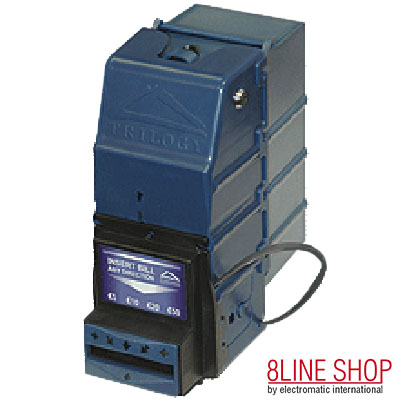

• Lockable, removable cashbox (Stacker models)
• Dual-stage optical anti-stringing technology
• High security design
• 12VDC standard

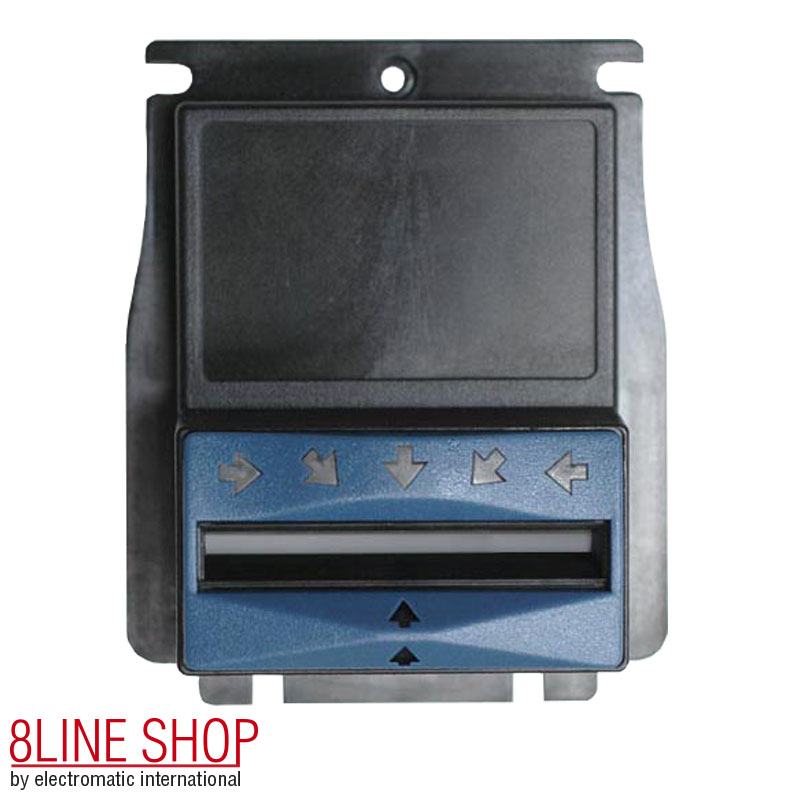

• Lighted arrows on bezel
• Flash updates via a PC
• Advanced diagnostics with PC
• Pushbutton / LED on-board diagnostics
• Simple setup with configuration card
• Many interfaces available
• Compatibility with other manufacturers

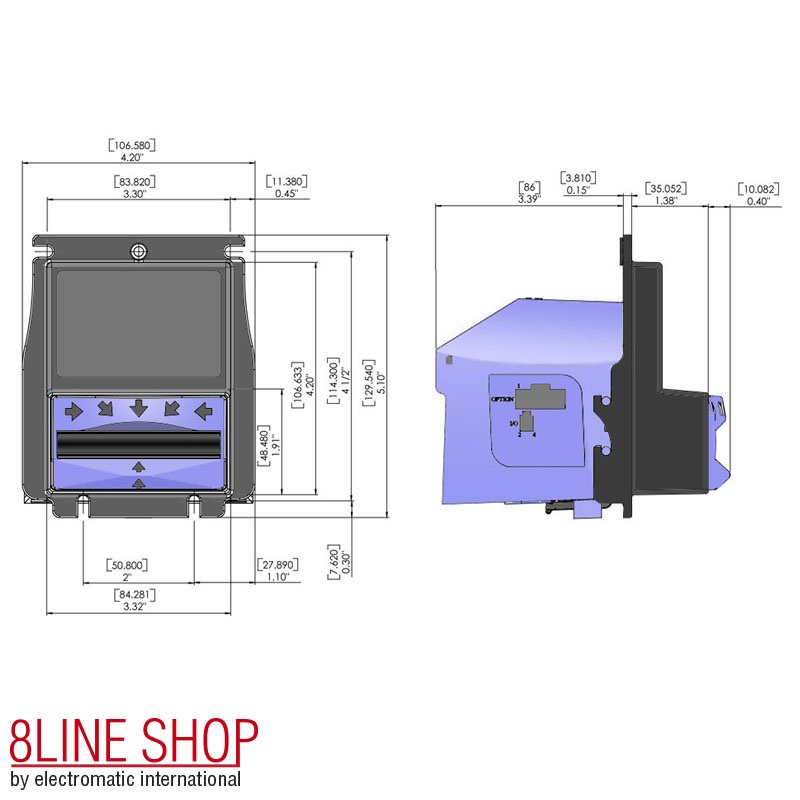

• Accepts bills up to 85mm wide
• Automatic self-calibration

Product Specifications

Operating Voltage:

12 VDC (+/- 10%) standard.

Operating Currents

Idle: 50 mA Accepting: 1.0 A Stalled: 3.0 A.

Operating Temperature

0C – 60C, 90 % non-condensing humidity.

Acceptance Rate

Greater than 95%, including second time insertion of a rejected note.

Acceptance Speed:

Approx. 20 notes per minute.

Sensor Array:

10 Optical Sensors.

Bills Accepted:

Up to 14 notes in all four directions (56 faces).

Net Weight:

1.3 lbs./0.59 kg.

Warranty:

2 years, parts and labor
