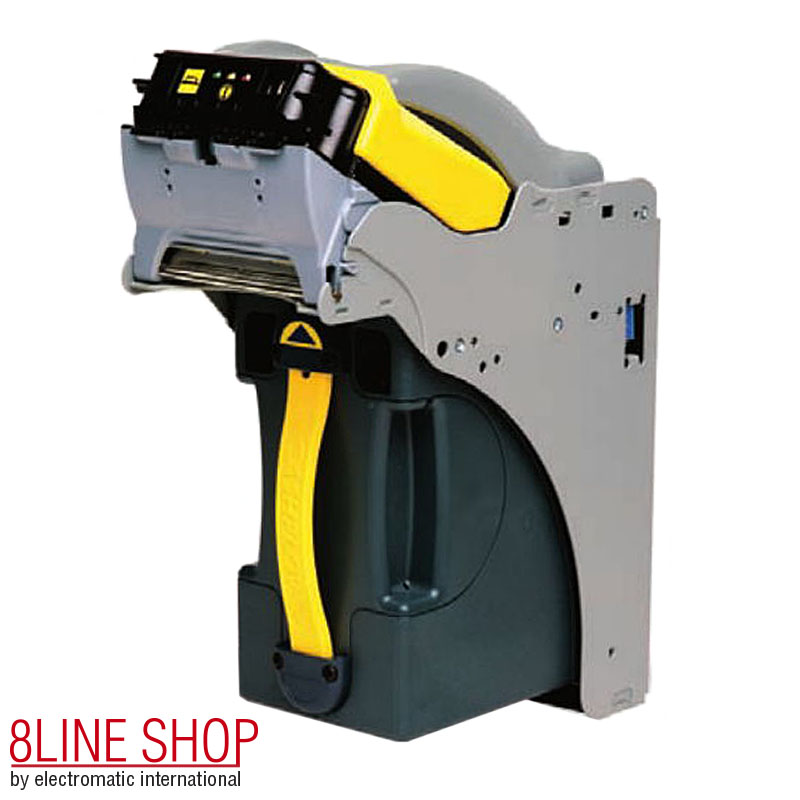

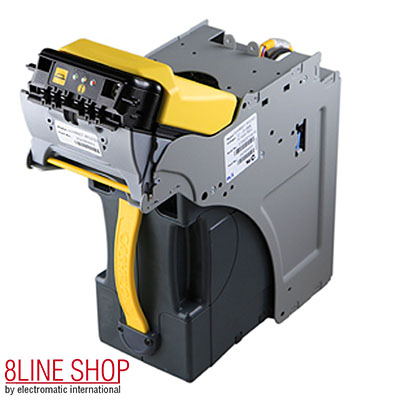

MEI Mars SE Advance Bill Validator

Evolving from the award winning CASHFLOW SC, the MEI SC Advance applies the latest technology and customer feedback to make a great product, even better.

Featuring enhanced recognition technology, faster note-to-note speed, and improved barcode recognition, the MEI SC Advance offers four cashbox options to ensure best fit. Additional product enhancements can add functionality to this bill acceptor resulting in a tailored solution for your individual gaming, retail, financial service or parking needs.

Key Advantages:

• Field-proven, reliable technology
• Many product extensions help to maximize your revenue
• Lower cost of ownership

Exceptional Performance

• Proven quality with 1,500,000+ units of CASHFLOW SC and SC Advance sold
• High note acceptance 98%+
• Under 2.5 seconds to stack

Reliability Comes First

• Global noteset of over 100 countries
• Low jam rate, creating more machine up-time

Flexible Approach

• Customizable. A variety of options for bezels, cashbox capacity and note widths
• Multiple interfaces
• Low maintenance costs equal higher revenue
• Backwards compatible with CASHFLOW SC field base

Additional Information

MEI knows note acceptors. Since developing the world’s first electronic, non-contact note acceptor, MEI products are relied upon for more than two billion transactions per week in over 100 countries. Perhaps no other MEI product so ideally serves customer needs as well as the MEI SC Advance. Evolved from the winning CASHFLOW SC note acceptor, SC Advance applies the latest technology and customer feedback to make a great product even better and redefine game performance once again. SC Advance features enhanced recognition technology, faster note-to-note speed, improved barcode recognition and increased capacity to accept up to 100 different currencies and denominations. It also has the industry’s best first-time acceptance rate for valid street-grade notes, including those that are damp, crinkled or torn. Ultimately, the true measure of note acceptor performance is in the amount of revenue it pulls in by driving the player experience. By minimizing wear components and note jams and maximizing the acceptance of legal currency, SC Advance increases game uptime and virtually eliminates the frustration associated with repeated note rejections. Now players can wait less and play more—rewarding an investment in MEI SC Advance with unparalleled returns.

Advanced Acceptance and Security:

A series of features contribute to a higher overall acceptance rate for legal notes and barcoded tickets while increasing security against fraud.
■ New recognition system provides a second barcode sensor to improve global ticket acceptance rates and offer 4-way ticket acceptance.
■ Full spectral analysis uses multiple wavelengths of light to look all the way through the note and validate its authenticity.
■ Advanced recognition algorithms facilitate the industry’s highest acceptance rates—even if the notes have been worn or damaged.
■ Fastest resolution to disputes with a window revealing the value of the last note stacked in the cashbox.

Exceptional Note Handling:

Early rejects are virtually eliminated by the attempt to accept all notes at first pass.
■ Corrective note transport system minimizes skew and offset in the acceptor head to prevent jams and unnecessary rejections.
■ Refined plastic molding techniques prevent obstructive flaws along the note path to avoid snags.
■ Sealed note path protects acceptor head from fluid and dust— significantly reducing the risk of jams.
■ Best first-time acceptance of street quality notes.

Lower Cost of Ownership:

Robust design combines functionality and durability to withstand even the toughest conditions and maximize machine uptime.
■ Extremely durable cashbox constructed of Verton plastic.
■ Protected internal mechanisms and drive gears insulates components from the operating environment.
■ Heavy gauge steel in chassis allows flexibility in mounting options.
■ Easily updated.
■ Fewer moving parts reduce required maintenance and associated inventory.

Maximized Investment in CASHFLOW SC:

Backwards compatibility with CASHFLOW SC extends the value associated with past and present investment in MEI, lowering the overall cost of operation.
■ Because enhancements are localized to the acceptor head, operators can update the slot floor at their own pace as capital becomes available.
■ Intelligent support tools sense the product version and run the corresponding software.
■ Includes all functionality developed for CASHFLOW SC— including a wide range of protocols, support tools, EASITRAX Soft Count and variety of cashbox sizes.

STS Advance:

A Portable Programming Module (PPM) makes downloading upgrades simple and fast. The PPM allows flash via USB connectivity.

EASITRAX® Soft Count:

Is an integrated software/hardware solution offering a faster, more efficient way to manage cash drops and evaluate data from slot machines.

GDS Compliant USB:

A harness that enables GSA standards reflecting the movement towards USB peripherals

Specifications

ACCEPTANCE RATE:

98% or greater1

NOTE/BAR CODE COUPON INSERTION NOTES:

Up to 50 notes, four ways, faceup and down

BAR CODE COUPONS:

Two-way faceup

NOTE DIMENSIONS

62mm – 83mm width
120mm – 166mm length

TRANSACTION SPEED:

Approximately three seconds to stack

ESCROW:

One note or one bar code coupon

SC SERIES SUFFIXES:

■ A SPC USB tri-port
■ E EASITRAX Soft Count
■ G GDS USB
■ U IGT USB
■ V Vault Cashbox
■W EBDS/SPC USB (tri-port)
■ X Deep Cashbox
■ Y EBDS/GSA USB (tri-port)

INTERFACES:

Multiple serial protocols
Multiple USB protocols

POWER SOURCE & CONSUMPTION:

12V – 28VDC
Standby: 10 Watts
Accepting: 30 Watts
Stacking: 70 Watts

ENVIRONMENTAL:

Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% – 95%2

SHIPPING WEIGHT:

SC Series 4kg (9 lbs.)
SC Cashbox 1.5kg (3 lbs.)
