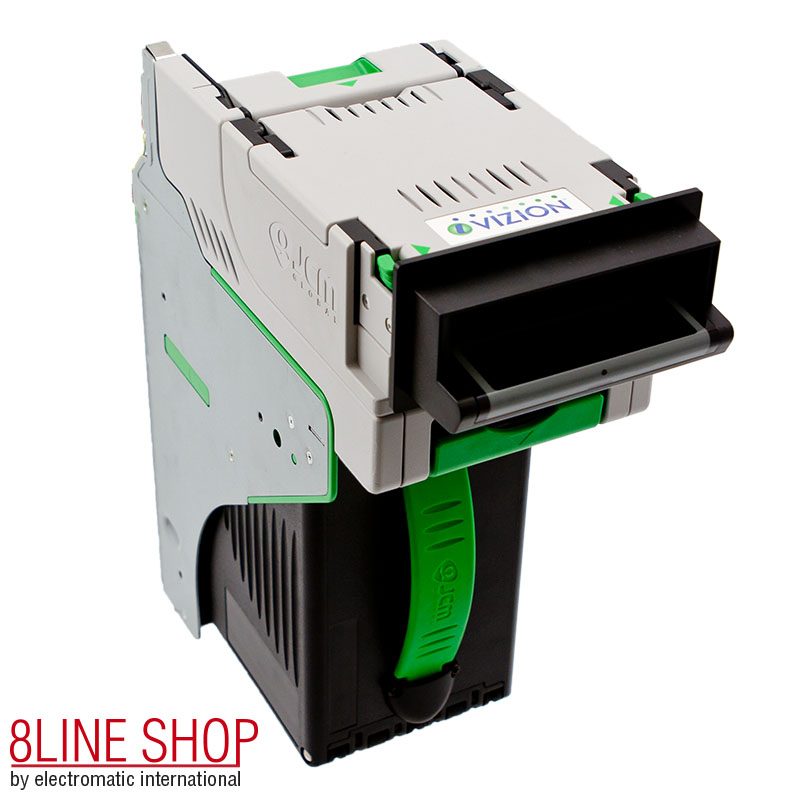

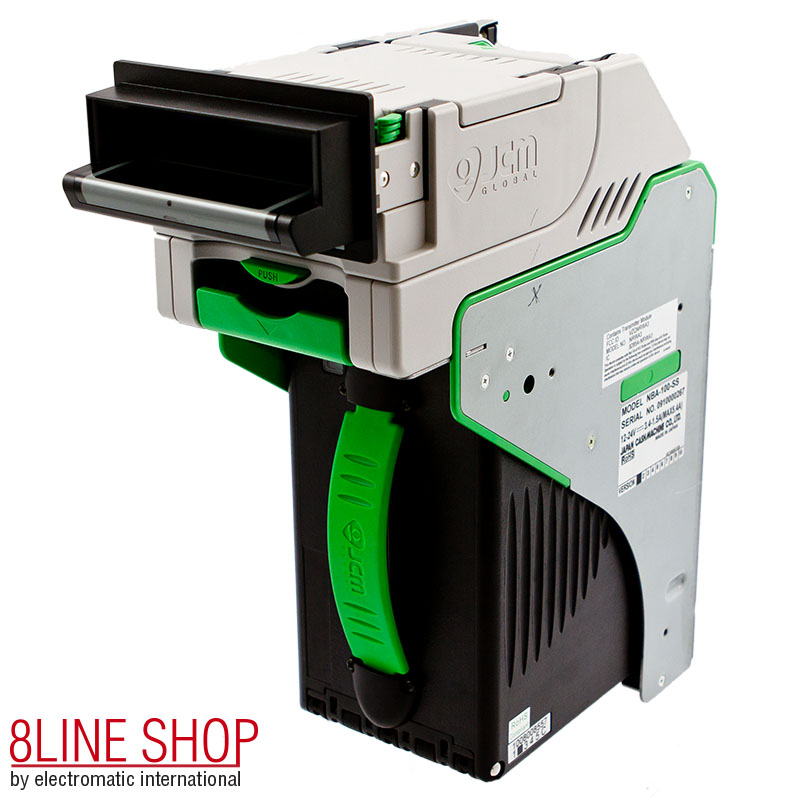

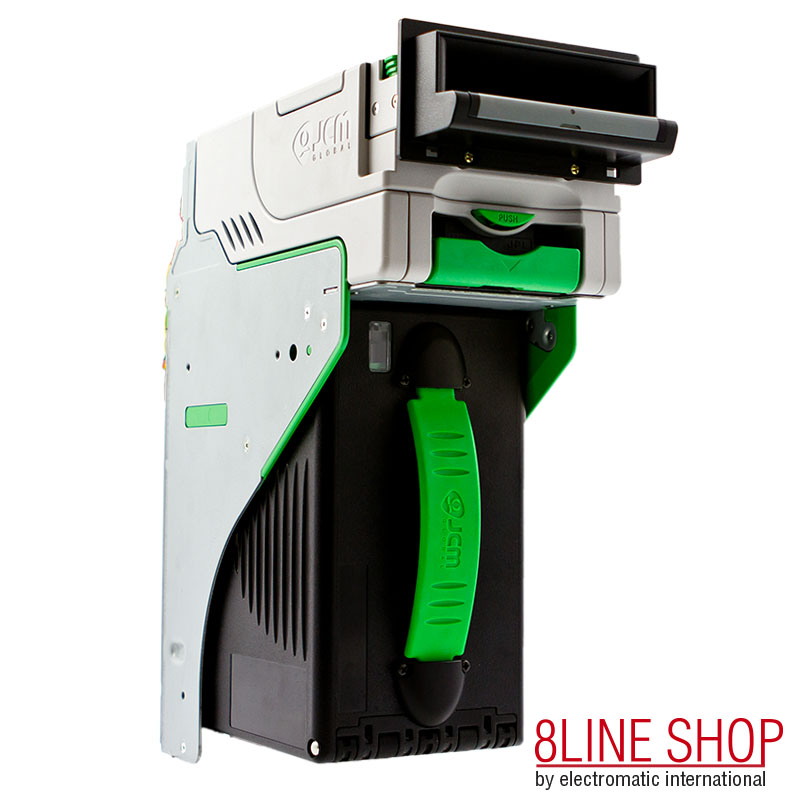

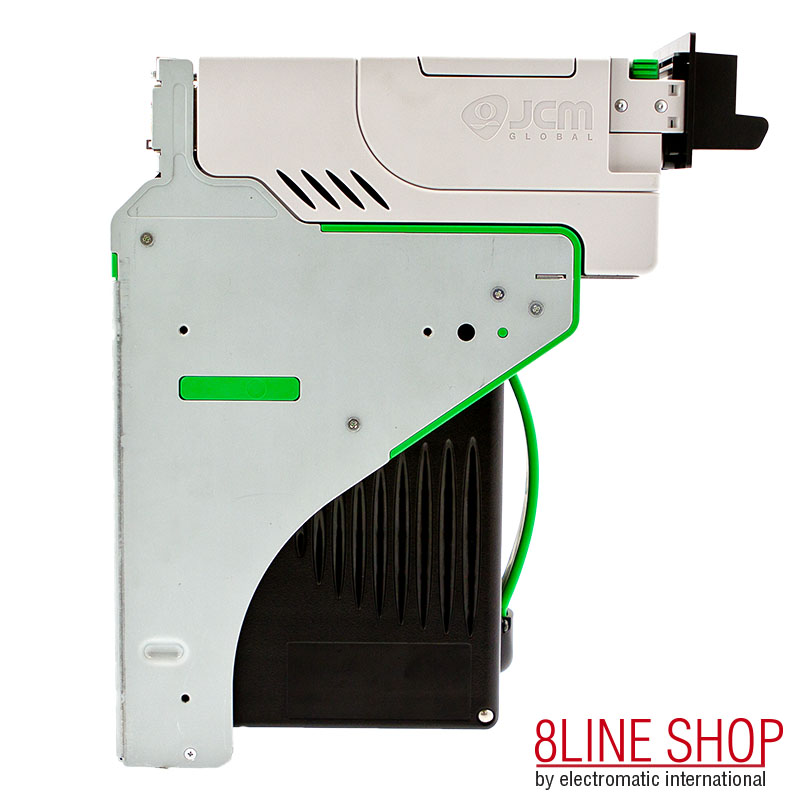

JCM Global iVIZION Bill Acceptor

The validation and denomination process is powered by Contact Image Sensor (CIS) Technology that scans 75 times more data points than any competitive product and captures the full image of a banknote or a ticket. It optically centers banknotes and eliminates the need for mechanical centering, dramatically improving banknote-to-banknote-processing speed. Inside iVIZION® is the best security combination in gaming: a combined optical and patented mechanical anti-stringing device that detects and prevents manipulation or mechanical cheating.

It runs faster with a powerful processor solely dedicated to banknote evaluation, resulting in a 99+ percent acceptance rate and the fastest banknote-to-banknote processing speed. It is self-calibrating, accepts banknotes up to 85mm wide and has a sealed banknote path with dirt and liquid resistant design, resulting in less service-related down time.

Quite simply, iVIZION® is the best, most powerful bill validator available, your best defense against counterfeiting and your fastest way to profits.

Features:

• Contact Image Sensor (CIS) Technology
• Optical banknote centering
• Optical/mechanical anti-threading
• Two high-speed processors
• 100% gaming protocol compatible
• Self-calibrating
• RFID ICB
• ICB memory module
• Customizable ICB reporting
• Web-enabled ICB reports
• Easy-entry 85mm wide bezel
• Sealed banknote path

Specifications:

Dimensions (H x W x D in inches)

• 11.7 x 4.5 x 9.2

Power Requirements

• 5.4A at 12V
• DC 12V (-10%) ~ DC 24V (+10%)

Memory

• 64 Mbit Flash memory standard expandable up to 192 Mbit Flash with optional expansion board

Cash Box Capacity

• 600 notes (standard)
• 1000 notes (optional)

Cash Box Dimensions (H x W x D in inches)

• 600 note: 7.5 x 4.1 x 6.2
• 1000 note: 7.5 x 4.1 x 8.5

Software

• Upgrades released for currency changes and security measures

ICB Is a standard feature of iVIZON

Manuals:

iVIZION Quick Overview
