ICT XBA Bill Acceptor
ICT XBA Bill Acceptor
-
Superior acceptance rate: 98% or even greater
-
Four way bill insertion acceptance
-
For indoor or Outdoor Use
-
Immunity to Strong Ambient Light
-
Anti-Fishing Design Structure
-
Fast Plug-in USB Flash Drive Upgrades
-
Superior Validation M.T.B.F 750,000 cycles
-
Resistance to extreme environments & Conditions
-
Energy Efficient Power Saving Function
-
Available with various interfaces
-
Warranty: 1-Year
Contact Us
954.920.6460 / 800.564.4735
Sales@8lineshop.com
Call For Pricing
Full Description
ICT XBA Bill Acceptor
The XBA Series is equipped with innovative wide-angle banknote insertion technology to offer a superior acceptance rate of 98% or higher. With an outstanding design, the XBA has the ability to provide a very high degree of immunity to strong ambient light, and the advanced optical/mechanical anti-fishing structure for better investment protection. The built-in USB port allows convenient firmware upgrades via USB flash drive.
Product Specifications
Acceptance Rate:
98% or greater
Bill Insertion:
4 way acceptance
Interface:
Pulse, MDB, RS232
Installation:
Indoor & Outdoor
Acceptance Speed:
Appox. 2.5 seconds to stack
Power Sources:
12V DC ±10%
24V DC ±10%
34V DC ±10%
Power Consuption:
Normal Mode- Standby : 0.15A, 1.8W
Operation: 1.0A, 12W
Maximum: 2A, 24W
Power Saving Mode- Mode 1: 50µA
Mode 2: 15µA
Operation Environment:
Operating Temperature: -20°C~65°C
Storage Temperature: -30°C~70°C
Humidity: 30%~95%RH (no condensation)
Manual:
XBA Quick Start Guide View PDF File (right-click, save targat as: to download)
XBA Installation Guide & Services Manual
Dipswitch Settings:
Belarus(7)(Pulse+MDB+ICT)
CHF+EUR+GBP(Pulse+MDB+ICT+Parallel A3)
England(2)(Pulse+MDB+ICT+Parallel A3)
Euro(4)(Pulse+MDB+ICT)
Euro(4)(Pulse+MDB+ICT+Parallel A3)
Euro(4)(Pulse+JPSTD+ccTalk+ICT+RS232)
Japan(4)(Pulse+MDB+ICT+Parallel A3)
Malaysia(6)(Pulse+MDB+ICT)
Malaysia(6)(Pulse+MDB+ICT+Parallel A3)
Poland(5)(Pulse+MDB+ICT+Parallel A3)
Romania(4)(Pulse+MDB+ICT+Parallel A3)
Singapore(4)(Pulse+MDB+ICT)
Singapore(4)(Pulse+MDB+ICT+Parallel A3)
Switzerland(4)(Pulse+MDB+ICT+Parallel A3)
Switzerland(8)(Pulse+MDB+ICT+Parallel A3)
Taiwan(4)(Pulse+MDB+ICT)
Taiwan(4)(Pulse+MDB+ICT+Parallel)
Thailand(4)(Pulse+MDB+ICT)
Thailand(4)(Pulse+MDB+ICT+ParallelA3)
Turkey(6)(Pulse+JPSTD+ccTalk+ICT+RS232)
United State(6)(Pulse+MDB+ICT)

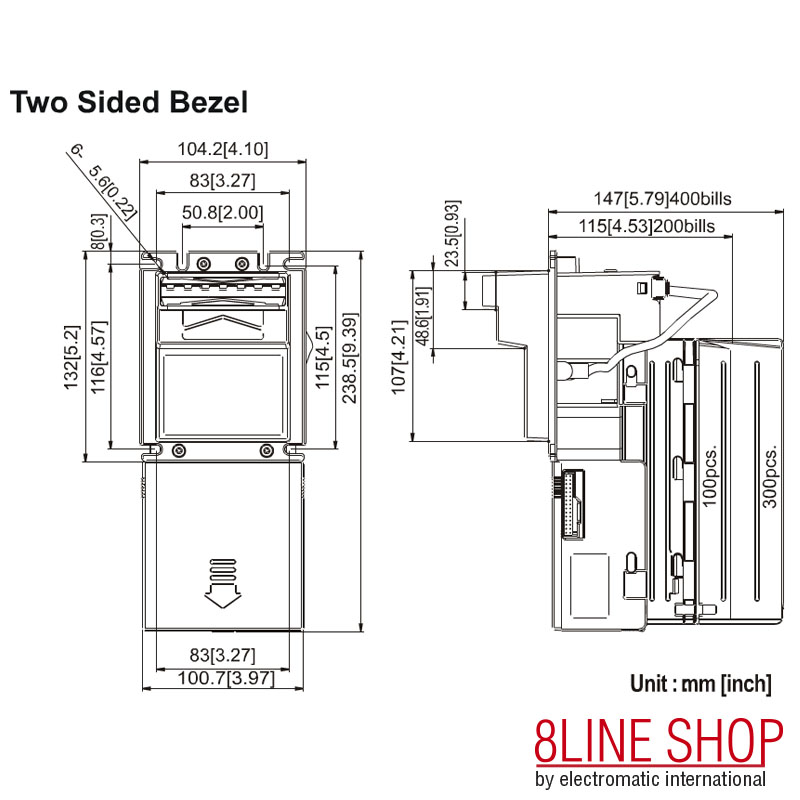

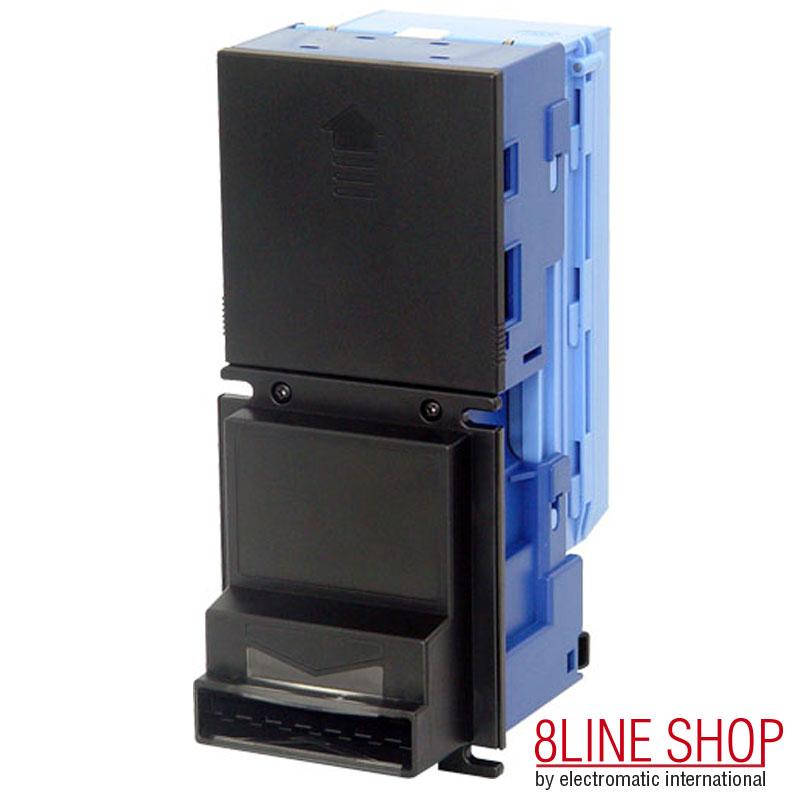

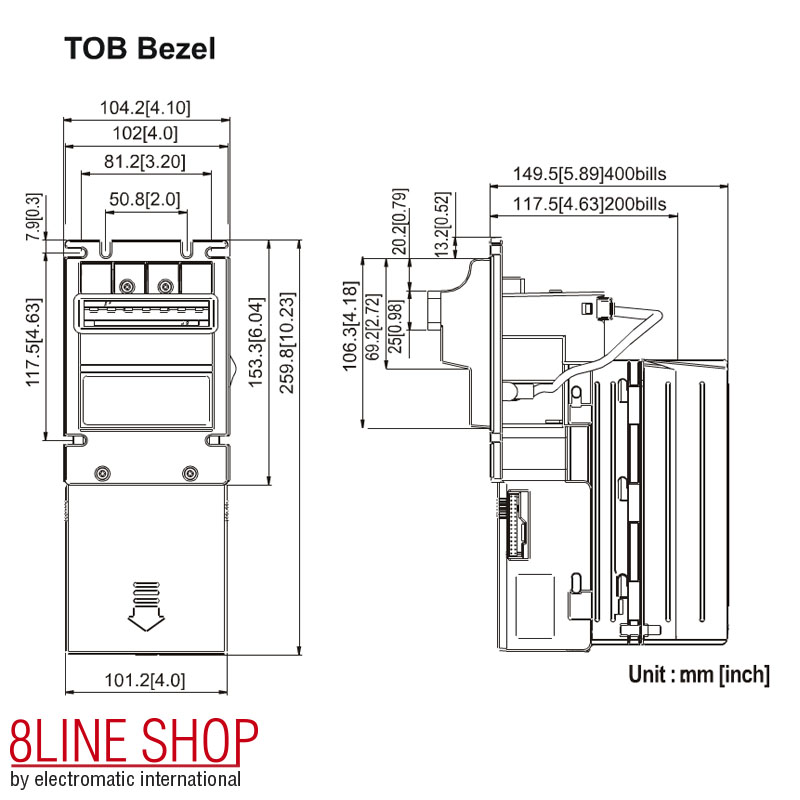

More Photos of the ICT XBA Bill Acceptor
