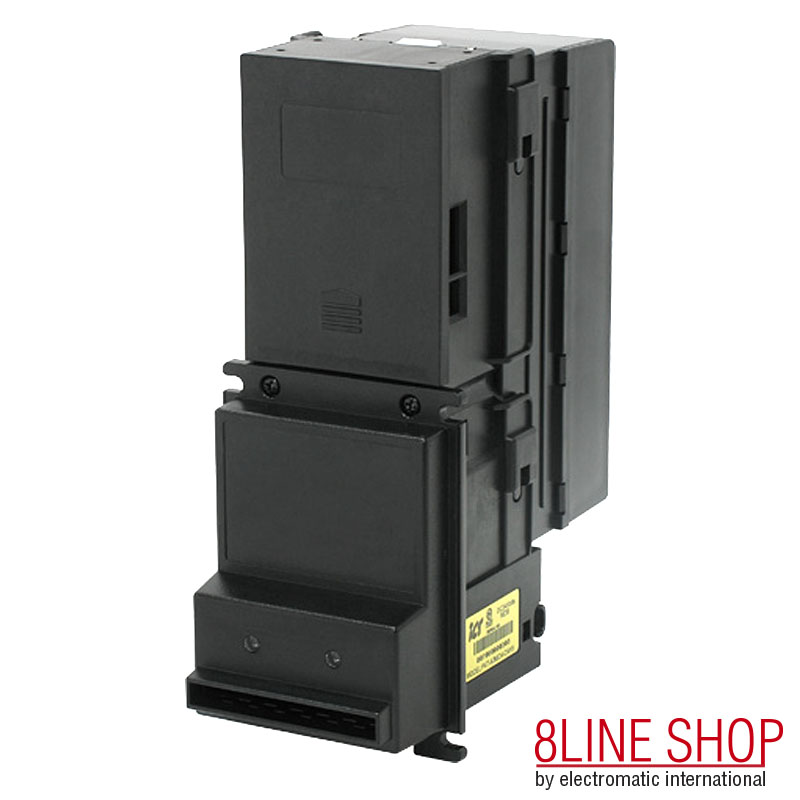

ICT PA7 Bill Acceptor
ICT PA7 Bill Acceptor
-
Accepts US $1, $5, $10, & $20 bills, including new currency
-
Four way bill insertion acceptance
-
High security module with bill box
-
Auto-calibrating
-
Numerous interfaces available
-
High acceptance rate: 96% or evengreater
-
Outstanding recognition
-
Easily install and maintainance
-
Warranty: 1-Year
Contact Us
954.920.6460 / 800.564.4735
Sales@8lineshop.com
Call For Pricing
Full Description
ICT PA7 Bill Acceptor
The PA7 is the first multi-protocol validator released by ICT. The ability to work on multiple power sources with simply the change of a harness or dip-switch customizable protocol selection make this unit a suitable choice for most redemption focused applications.
Product Specifications
Bill Insertion:
4 way acceptance
Interface:
Pulse or NISR or ICT Protocol
Bill Box Capacity:
400 bills (350~450 )
Acceptance Speed:
Appox. 3 seconds ( including bill stacking )
Power Sources:
12V DC, 3Amp
AC 117V / 0.2Amp
Power Consuption:
Max 50 Watts
Acceptance Rate:
96% or more
The second acceptance is included in the acceptance count.
The following bills are excluded:
a. Incomplete bills such as extremely dirty, wetted, broken or wrinkled ones.
b. Bills folded at a corner or side.
c. Incorrect-made bills.
Weight:
Aprroximately 1.2kg (Shipping)
Manual:
View PDF File (right-click, save targat as: to download)
Dipswitch Settings:
More Photos of the ICT PA7 Bill Acceptor
