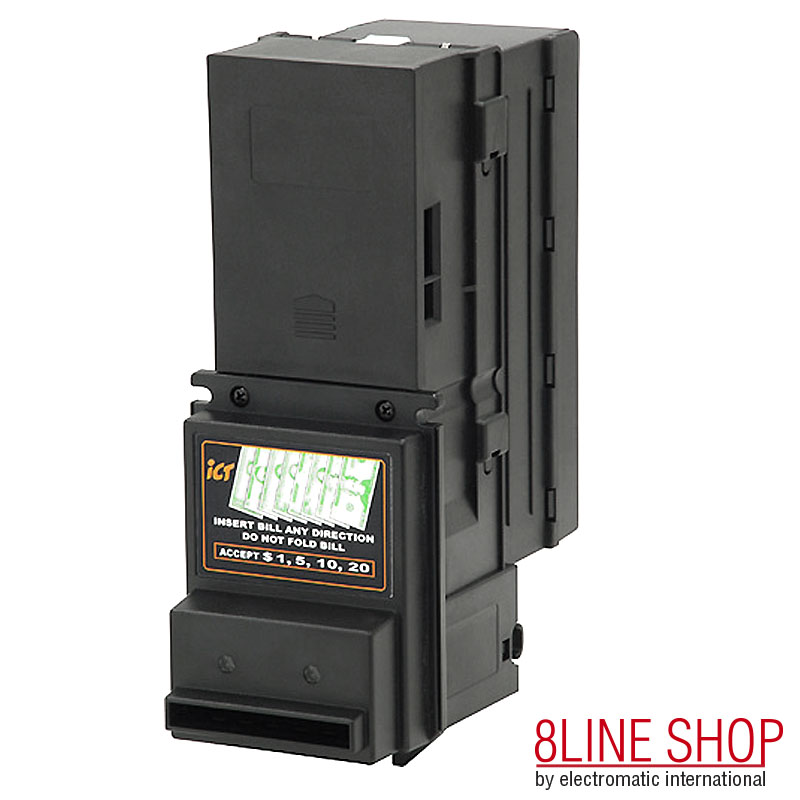

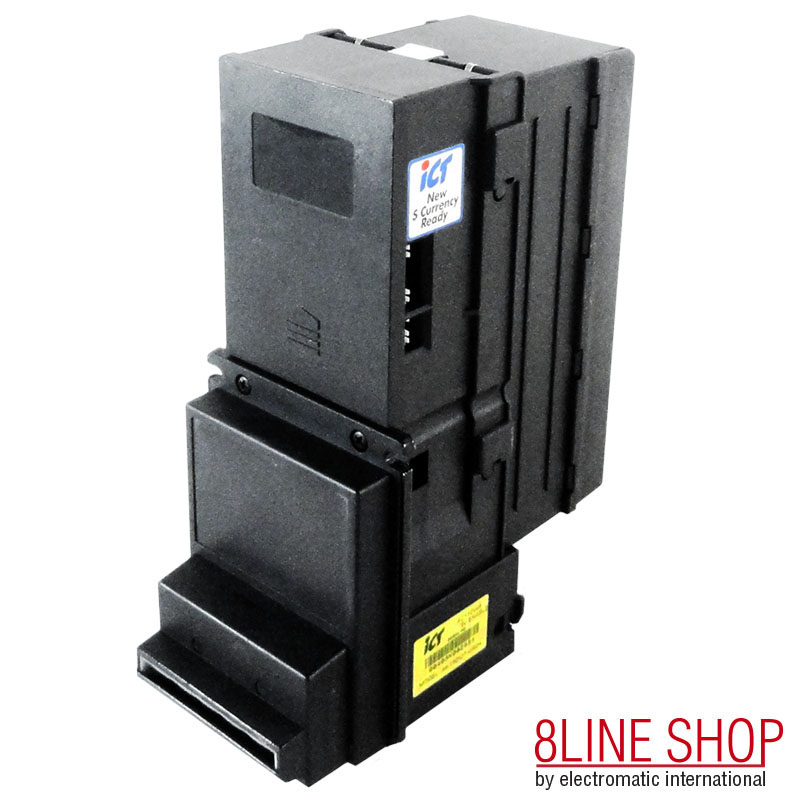

The A and V series validators are ruggedly built, low cost alternatives suitable for any vending or amusement based application. They are also the operators choice on tens of thousands of low item value redemption machines. This unit has proven to be a workhorse and ideal solution for most amusement and vending applications.
4 way acceptance
Pulse or MDB (Multi-Drop Bus)

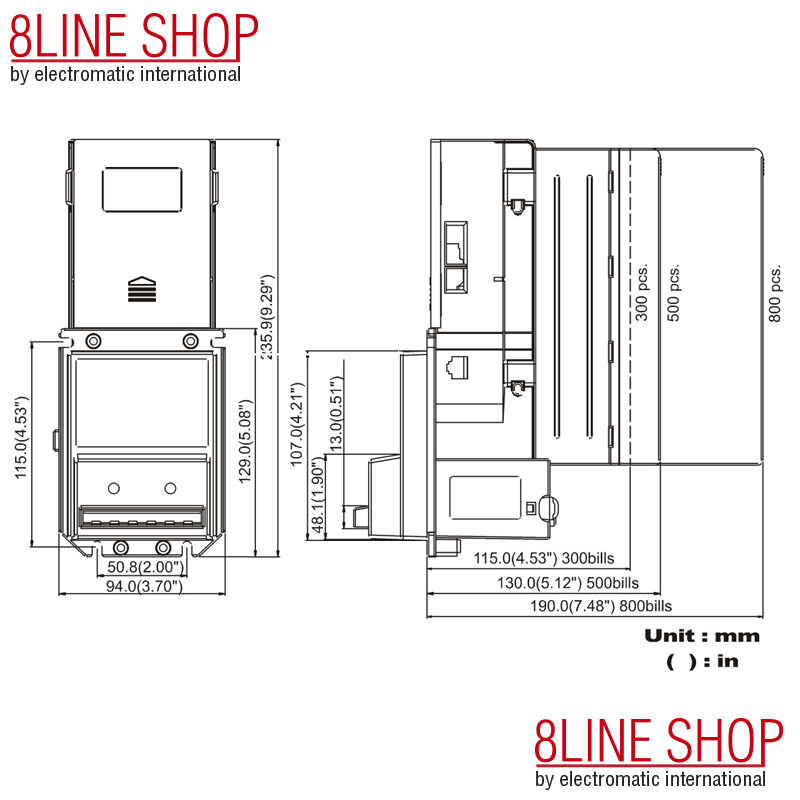

300 bills ( 200~300 )
500 bills ( 300~500 )
800 bills ( 750~850 )
1000 bills ( 1000~1140 )
Appox. 3 seconds ( including bill stacking )
12V DC, 3Amp
34V DC( 24V~45V) or 24V AC,2Amp
110V AC, 60HZ, 0.5Amp
Max 50 Watts
96% or more
The second acceptance is included in the acceptance count.
The following bills are excluded:
a. Incomplete bills such as extremely dirty, wetted, broken or wrinkled ones.
b. Bills folded at a corner or side.
c. Incorrect-made bills.
Aprroximately 2kg (Shipping)
View PDF File (right-click, save targat as: to download)
United States(2) A6 Only
United States(4)
United States(4 enable) A6 Only
United States + Mexico
Mexico
